Limited Hot Air Rework Station YIHUA 853D USB 3A-Three Tools- Soldering Station, Power Supply 0~3A, 0-15V with output and test modes. Also ºC/°F display, Digital Cal, Sleep Function
محطة لحام الهواء الساخن YIHUA 853D USB 3A بثلاث أدوات ومحطة لحام ومصدر طاقة بقوة 0 ~ 3 أمبير و 0 ~ 15 فولت مع أوضاع الإخراج والاختبار. كما تحتوي على شاشة عرض درجة حرارة مئوية / فهرنهايت و معايرة رقمية ووظيفة السكون

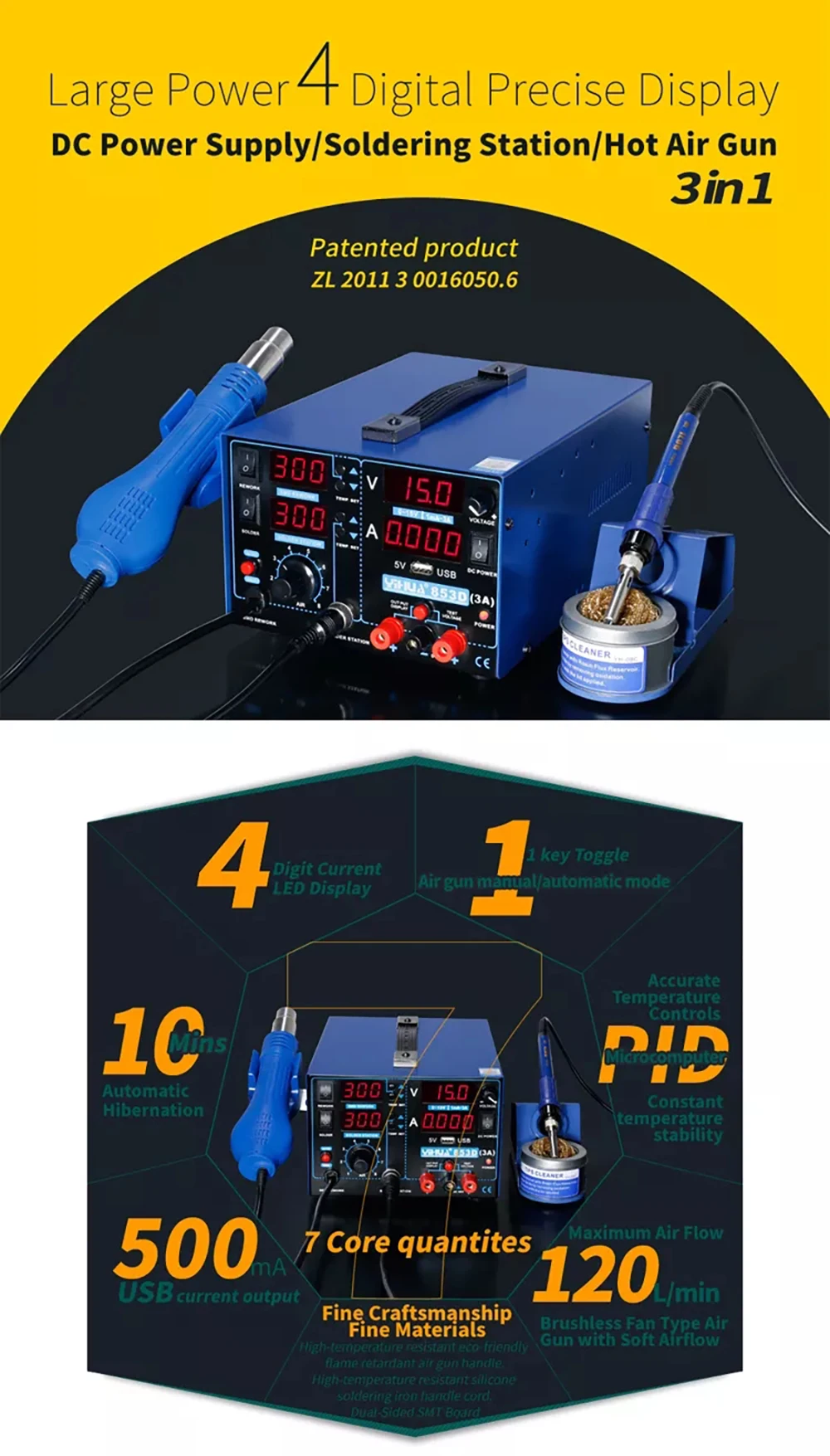

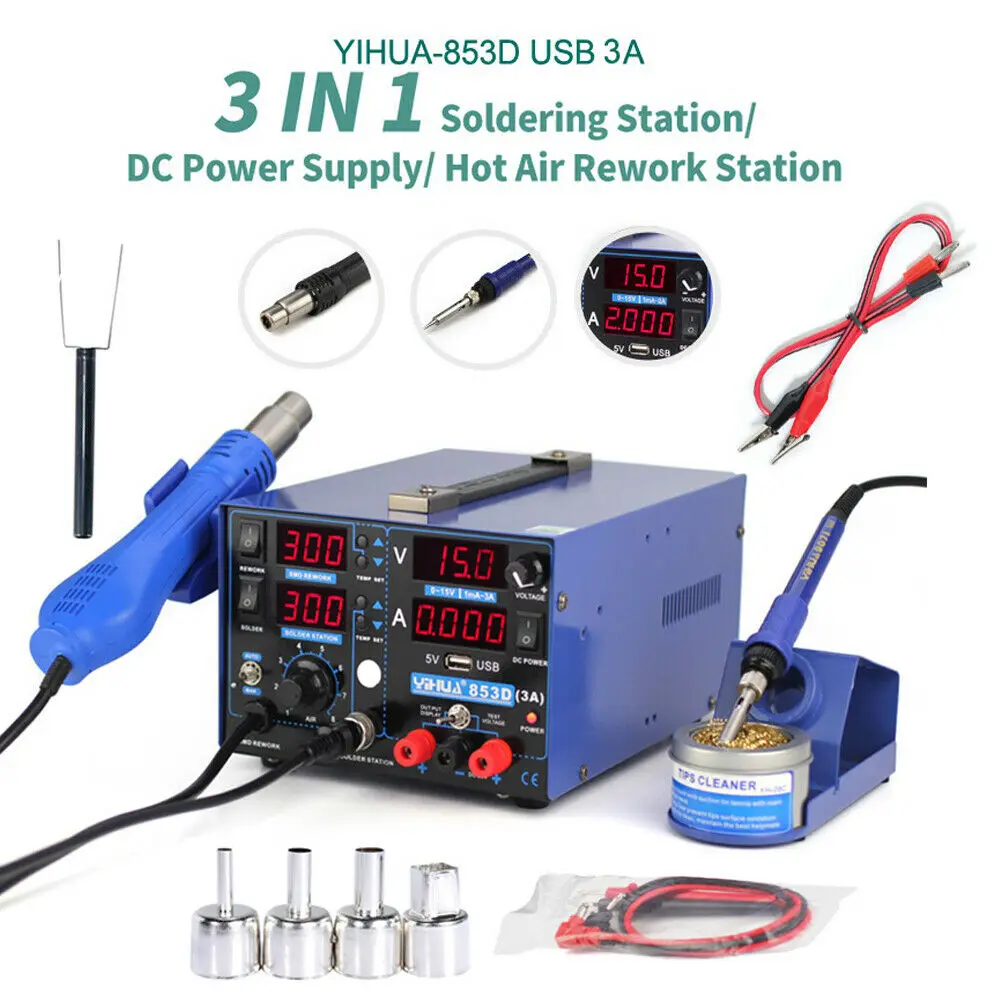

Product Description: Experience top-notch performance with the YIHUA 853D 3A USB Soldering Station, a versatile 3-in-1 solution that combines a Soldering Station, Hot Air Gun, and DC Power Supply into a single unit. This multifunctional tool is designed to cater to the needs of both professionals and hobbyists, offering efficiency and precision for a wide range of applications.
Key Features:
- Enhanced Model: The YIHUA 853D 3A Soldering Station is an improved version that inherits all the advantages of the previous 853D+ model.
- LED Digital Displays: All components feature LED digital displays, providing precise, 4-digit current values in mA for easy monitoring.

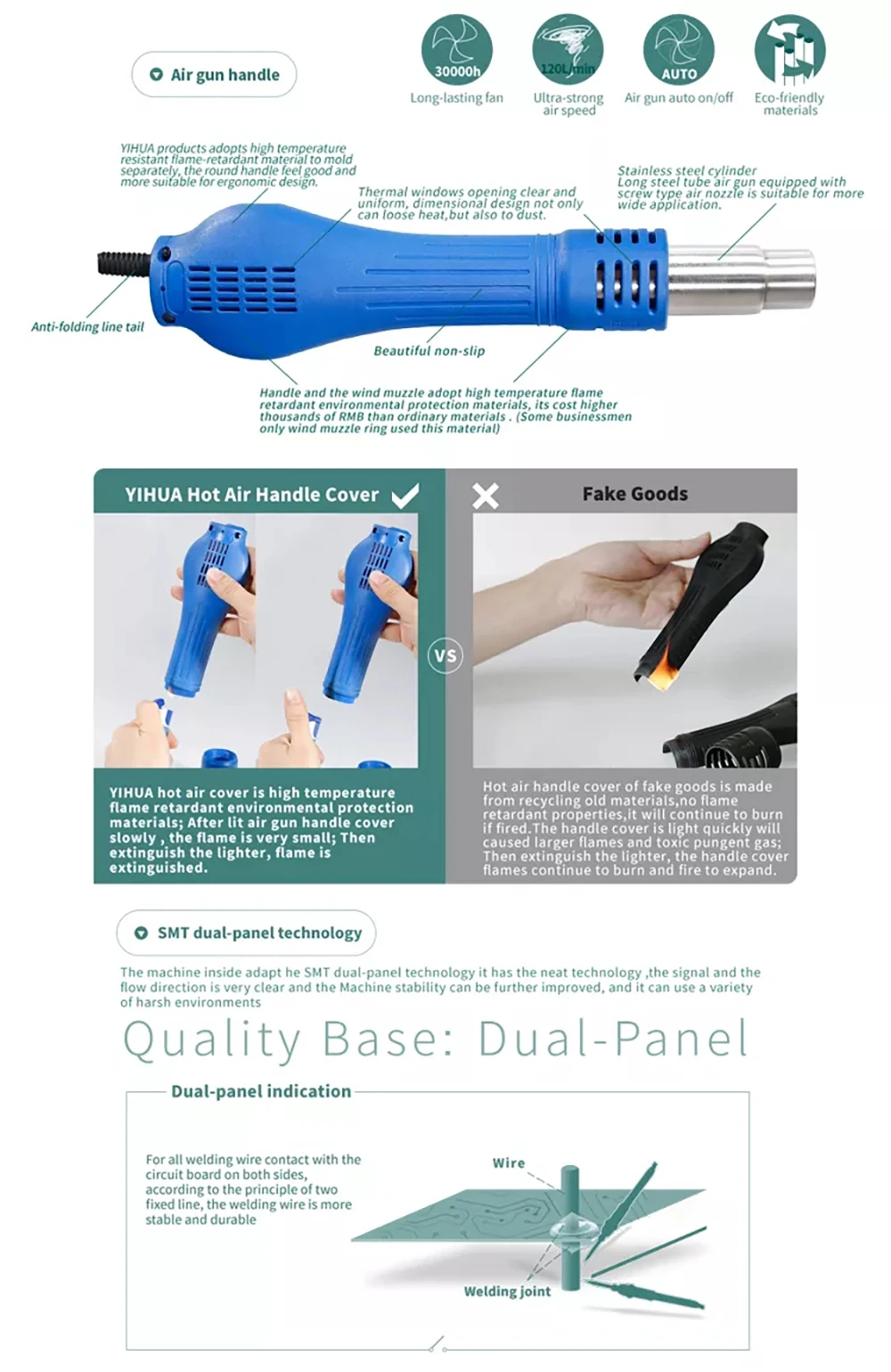

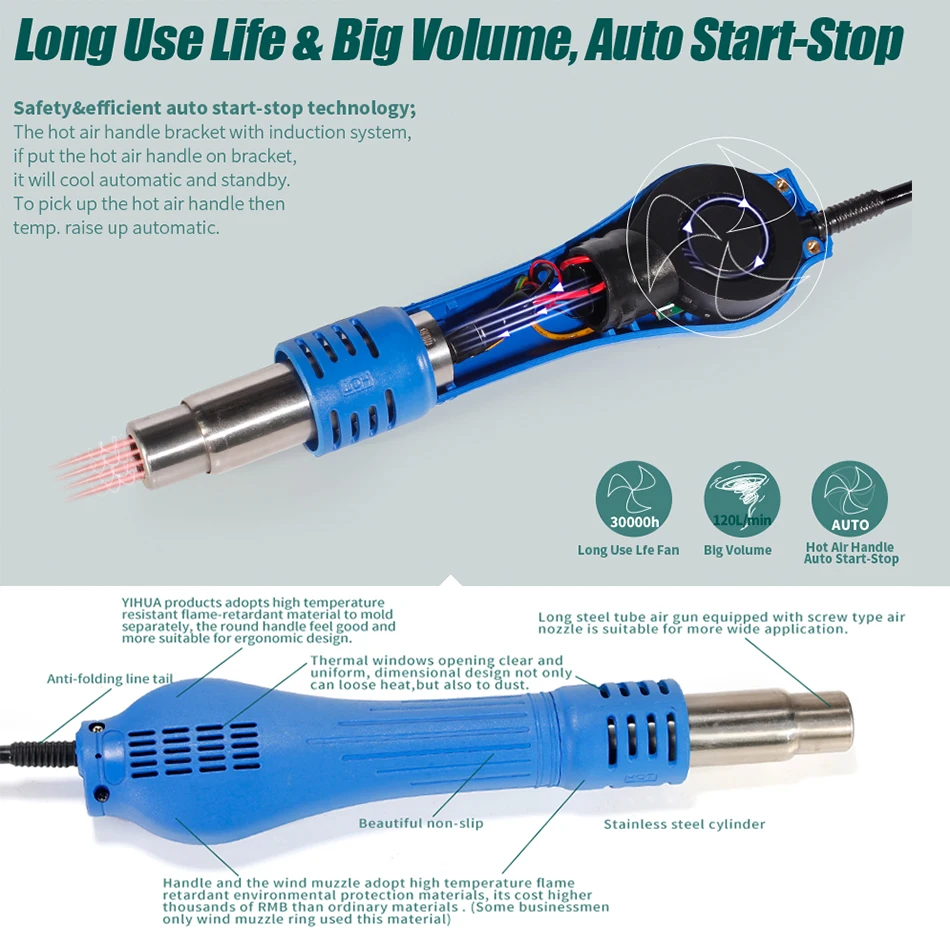

- Auto/Manual Conversion: The air gun handle includes an auto/manual conversion function, allowing for seamless operation.
- Iron Handle Sleep Function: The iron handle has a 10-minute sleep function, conserving energy and prolonging its lifespan.

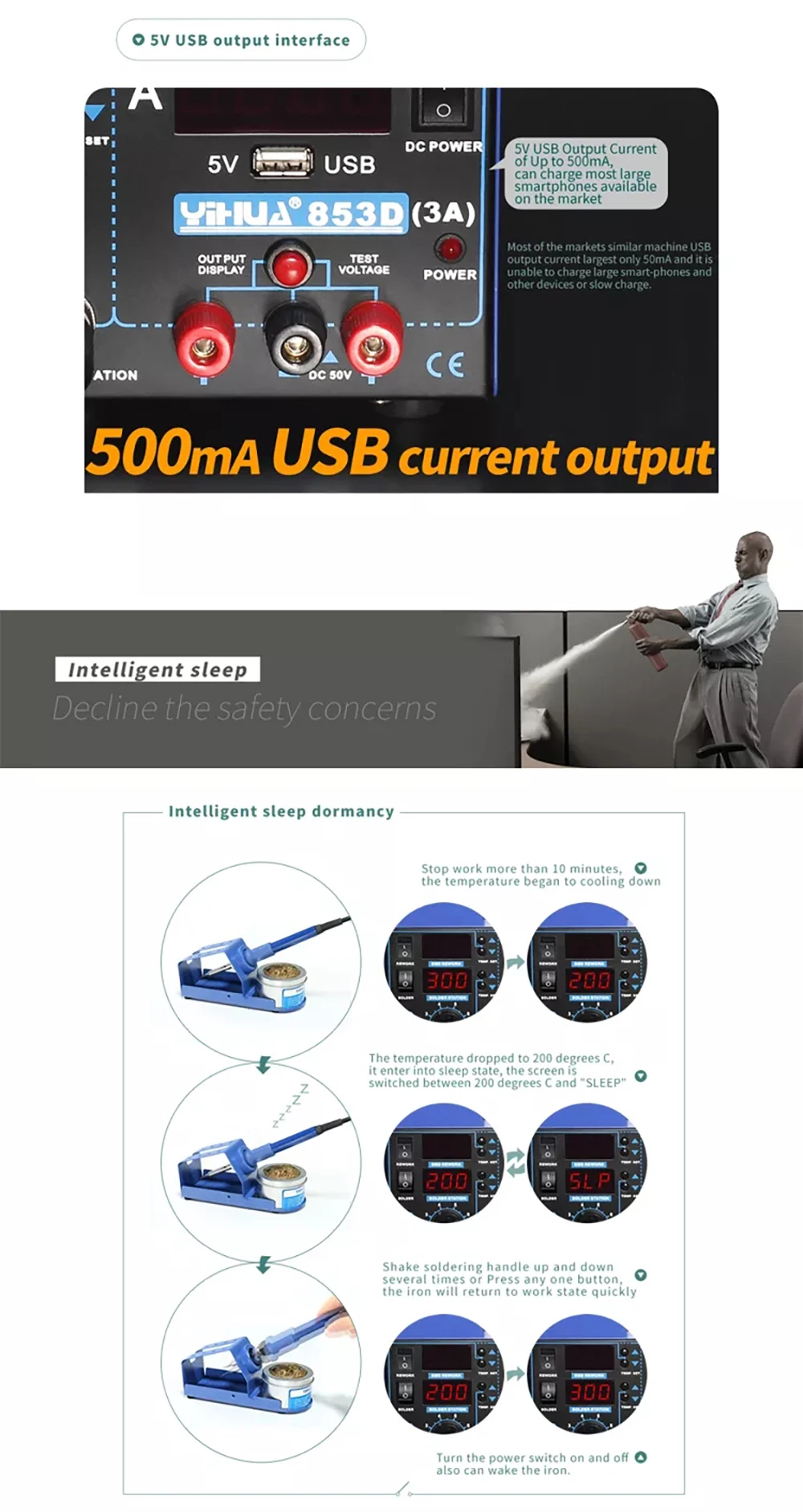

- 5V USB Output: This new model includes a convenient 5V USB interface for mobile phone repairs and as a power supply source.
- Enhanced Wiring Terminal: The output end uses thicker materials, increasing power output capacity.
- Double Panel SMT Technology: The internal circuit board features double-panel SMT technology for improved stability and durability.
- Elegant Design: The new front printing enhances the machine’s appearance, making it more aesthetically pleasing.
- Professional Iron Holder: The iron holder comes complete with solder tips, flux, cleaner tips, and copper wire balls, making tip maintenance more convenient and prolonging tip life.
Technical Data:
- Rated Voltage: AC 220V±10% 50Hz (110V±10% 50Hz)
- Total Power: 840W±10% (max) (720W for soldering, 75W for the hot air gun, 45W for the DC power supply)
- Working Environment: 0-50°C
- Model: 853D 3A(A/M)
- Input Voltage: 110V/220V
- Dimensions: 5634.542cm
- Current: 3A

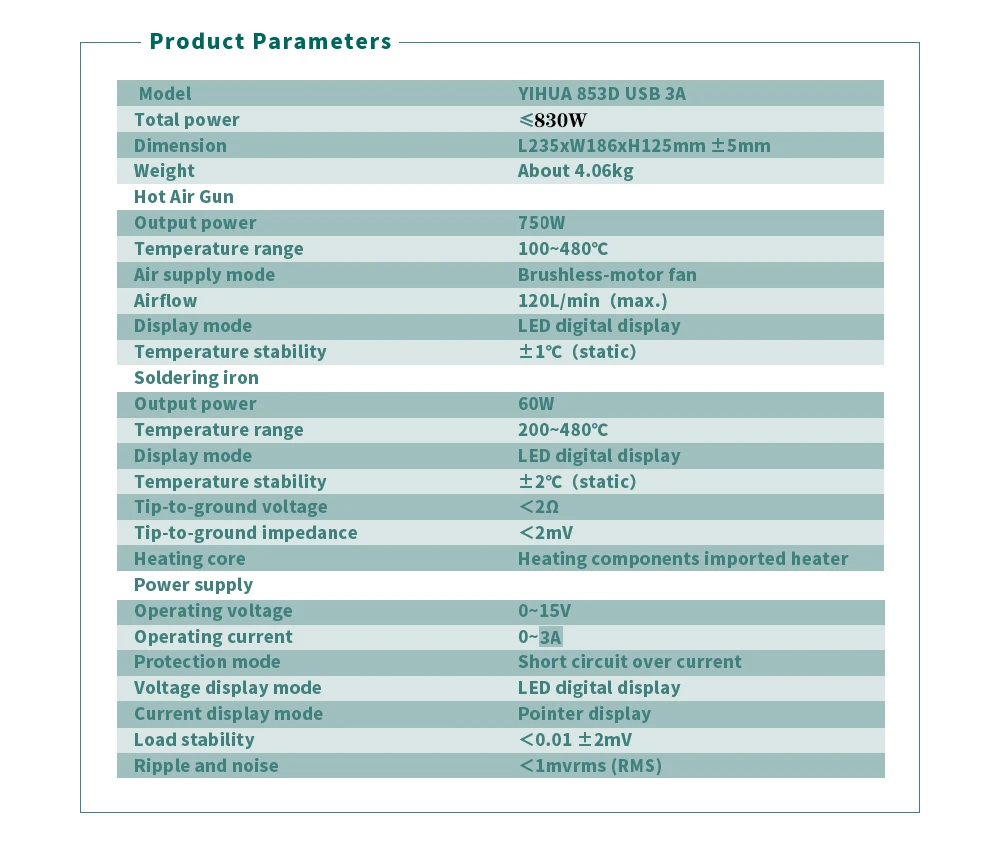

Specifications:
SMD Rework Soldering Station
- Model: 853D
- Protection Current: 3A (Optional)
- Input Voltage: 220V AC
- Power Consumption: ≤730/≤750/≤800W
- Working Environment: 0°C-40°C
- Storage Environment: -20~80°C
- Storage Humidity: 35%-45%
- Dimensions: 253186124mm ±5mm (L x W x H)
- Color: Blue
- Cable Length: About 1M
Hot Air Gun
- Brushless Fan: Gentle Wind
- Working Environment: 0~50 degrees Celsius
- Airflow: 120L/min (max.)
- Temperature Stability: ±1°C (static state)
- Temperature Control: 100~480°C
- Display Type: LED Digital Display
Soldering Station Hot Iron
- Tip Ground Voltage: <2mV
- Tip Ground Impedance: <2ohm
- Temperature Stability: ±2°C (static state)
- Temperature Control: 200~480°C
Soldering Station DC Power Supply
- Output Voltage: DC 0~15V ±10%
- Load Stability: <0.01 ±2mV
- Testing Voltage: 0~49.9V
- Protection Current: 1A/2A/3A
- Temp. Coefficient: <300ppm/°C
- Ripple DB: <1mvrms (Virtual Value)
The YIHUA 853D 3A USB Soldering Station offers exceptional performance, enhanced functionality, and precise control for various soldering and rework applications. This all-in-one tool is designed to meet the demands of professionals and hobbyists, ensuring efficient and reliable results.
Please confirm the status of a product before making a payment, follow these steps:
- Review the Product Information: Carefully read through the product details on the website or listing. This includes the product name, description, price, and any specifications or features. Make sure it matches what you intend to purchase.
- Check Availability: Verify if the product is in stock and available for purchase. If it’s listed as “out of stock” or “temporarily unavailable,” it may not be available for immediate purchase.
- Contact Customer Support: If you have any doubts or specific questions about the product’s availability, quality, or delivery time, it’s a good idea to contact the seller’s customer support or the online store’s customer service. They can provide you with the most up-to-date information.
- Read Reviews: Look for customer reviews and ratings, if available. This can give you insights into the product’s quality and the seller’s reliability.
- Check Shipping and Delivery Times: If the product is available, check the estimated shipping and delivery times. Ensure they meet your requirements, especially if you need the product by a specific date.
- Payment and Receipt Confirmation: When you’re ready to make a payment, review your order details before confirming the purchase. Double-check the product, quantity, price, and any additional fees. Ensure that the payment page is secure (look for the “https” in the URL).
- Save Confirmation Emails: After making the payment, save and confirm any order or payment confirmation emails. These can serve as proof of your transaction.
- Payment Method Security: Use secure payment methods, such as credit cards or trusted online payment systems. Be cautious of providing personal or financial information over unsecured or suspicious websites.
- Return and Refund Policy: Familiarize yourself with the return and refund policy of the seller or online store. This information is crucial in case you need to return the product or request a refund.
- Keep Records: Maintain records of all communication and transactions related to the purchase. This includes emails, receipts, and order confirmations.
By following these steps, you can ensure that you are well informed about the product’s status and can make a secure and informed payment.
Feel Free to contact us: https://sg966.com/contact-2/
Working Guide: https://www.youtube.com/watch?v=0xFgpmhe8lw
