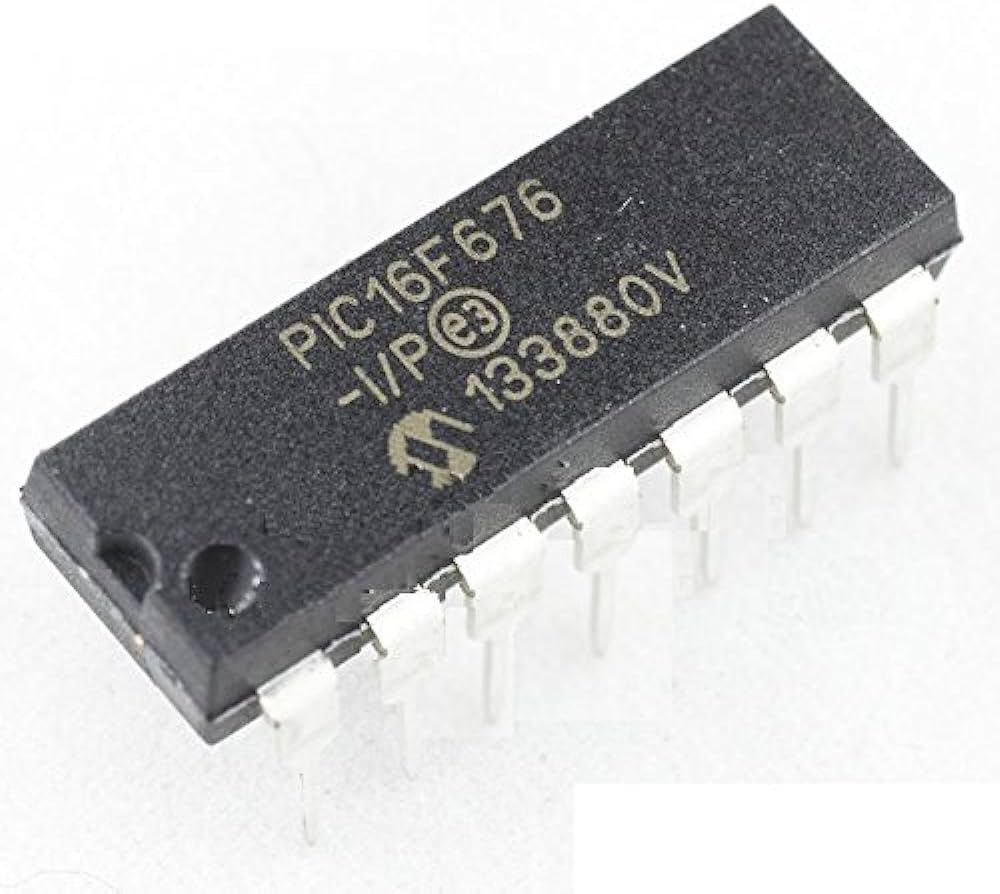

PIC16F676 IC

دائرة متكاملة PIC16F676

Meta Description of PIC16F676 IC

The PIC16F676 is a compact and efficient 8-bit microcontroller from Microchip Technology, designed for a wide range of embedded control applications. With integrated analog and digital peripherals, low power consumption, and a simple architecture, this IC is ideal for automation, sensor interfacing, power management systems, and more.

Overview of PIC16F676 IC:

The PIC16F676 is a member of Microchip’s 8-bit PIC microcontroller family, specifically designed to deliver reliable performance for general-purpose and analog-intensive embedded systems. It operates on the high-performance RISC architecture with a built-in 10-bit Analog-to-Digital Converter (ADC), internal oscillator, and EEPROM. Its small form factor and power-efficient design make it highly suitable for applications requiring analog interfacing and minimal component count.

This IC comes in a 14-pin PDIP, SOIC, or TSSOP package, offering flexibility for both through-hole and surface-mount PCB designs. It operates within a voltage range of 2.0V to 5.5V, which makes it compatible with a variety of power supply configurations.

Key Features of PIC16F676:

1. 8-Bit RISC Architecture:

   • Offers 35 powerful instructions, most of which are executed in a single instruction cycle.

   • Provides fast and predictable performance suitable for time-critical applications.

2. Program Memory and Data Memory:

   • 1.75 KB of Flash program memory for firmware storage.

   • 64 Bytes of SRAM and 128 Bytes of EEPROM, useful for storing variables and non-volatile data such as calibration values or user settings.

3. Analog-to-Digital Converter (ADC):

   • 10-bit ADC with 8 input channels allows accurate analog signal monitoring.

   • Useful for sensor interfacing, temperature monitoring, or voltage measurement.

4. Internal Oscillator of PIC16F676 IC:

   • Includes a precision 4 MHz internal oscillator, reducing the need for external clock components.

   • Supports cost-effective and compact designs.

5. I/O Ports:

   • Up to 12 I/O pins, many of which are multi-functional.

   • Pins can serve as digital input/output, analog input, or special function interfaces (like comparator inputs).

6. Low Power Consumption of PIC16F676 IC:

   • Operates in multiple power-saving modes including Sleep mode.

   • Ideal for battery-powered and energy-conscious applications.

7. On-Chip Comparators:

   • Includes 2 analog comparators, which can be used for analog signal threshold detection or zero-crossing applications.

8. In-Circuit Serial Programming (ICSP):

   • Supports easy and flexible firmware upgrades and debugging without removing the chip from the circuit.

9. Operating Temperature Range of PIC16F676 IC:

   • Functions reliably in a wide temperature range from -40°C to +85°C, suitable for industrial environments.

10. Watchdog Timer and Power-On Reset:

    • Built-in watchdog timer prevents system hangs by resetting the chip if code execution fails.

    • Power-on Reset (POR) and Brown-Out Reset (BOR) enhance reliability in fluctuating power environments.

Uses and Applications of PIC16F676 IC:

1. Sensor Interfacing:

   • Commonly used in temperature, humidity, light, and motion sensing devices.

   • Its built-in ADC and comparators make it ideal for analog sensor applications.

2. Industrial Automation of PIC16F676 IC:

   • Controls relays, actuators, and signal conditioning circuits.

   • Frequently employed in programmable timers and signal monitoring systems.

3. Power Management:

   • Suitable for battery charging circuits, voltage regulation systems, and smart power monitoring devices.

4. Consumer Electronics:

   • Integrated into devices like remote controls, lighting systems, and basic home automation modules.

5. Portable Instruments:

   • Found in compact handheld meters, data loggers, and diagnostic tools due to its low power draw and minimal external components.

6. Educational Projects of PIC16F676 IC:

   • A popular choice among students and hobbyists for learning embedded system design and programming due to its simple architecture and extensive support resources.

Why Choose PIC16F676?

The PIC16F676 provides an excellent balance between performance, cost, and functionality. Its analog integration, low power profile, and robust architecture make it highly reliable for a wide array of embedded control tasks. With Microchip’s comprehensive development tools and vast documentation, it ensures a smooth learning curve and scalable project development.

Whether you’re designing an industrial sensor node or a low-cost consumer product, the PIC16F676 delivers the essential features you need without unnecessary complexity or cost overhead.
