ABB CB1-632B Compact Buzzer High Quality
جهاز تنبيه (Buzzer) مدمج من ABB طراز CB1-632B، عالي الجودة
Product Overview for ABB CB1-632B Compact Buzzer High Quality

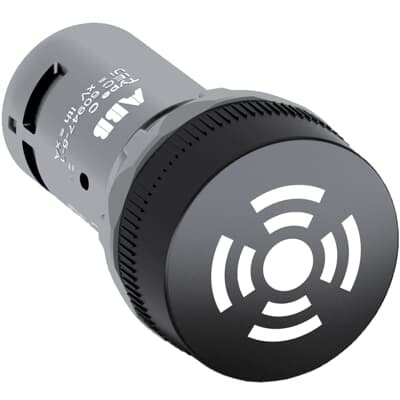

The ABB CB1-632B Compact Buzzer is a compact industrial acoustic signaling device designed to provide clear, pulsating sound alerts in electrical panels, industrial control systems, automation equipment, and machinery. Manufactured by ABB, this buzzer belongs to the CB1 compact pilot device series and is designed for applications where reliable audible indication is essential.
Operating on a rated supply voltage of 110–130 V DC, the ABB CB1-632B generates a pulsating acoustic signal without illumination. Its black, non-illuminated design makes it suitable for control panels and operator interfaces where sound alerts are required without an additional visual indicator. The product uses screw terminals for electrical connections and supports installation in compatible industrial control equipment.
Whether used in factory automation, machine control, electrical distribution panels, or industrial monitoring systems, the ABB CB1-632B Compact Buzzer offers a practical solution for notifying operators of equipment status changes, warnings, and other important operating conditions.
Key Features of ABB CB1-632B Compact Buzzer High Quality
Trusted ABB quality: Designed for industrial control and signaling applications.
Rated operating voltage: 110–130 V DC.
Pulsating sound output: Produces intermittent audible alerts to attract operator attention.
Compact design: Suitable for space-conscious control panels and operator stations of ABB CB1-632B Compact Buzzer High Quality.
Black finish: Provides a professional appearance in industrial installations.
Non-illuminated operation: Focuses on audible signaling without a built-in light.
Screw terminals: Supports secure electrical connections when installed correctly.
Wide operating temperature range: Specified for ambient temperatures from -25°C to +70°C.
Panel protection: The front offers IP66, IP67, and IP69K protection ratings under the manufacturer’s specified conditions.
Industrial compliance: Designed to meet applicable standards listed in ABB product documentation.
Technical Specifications of ABB CB1-632B Compact Buzzer High Quality
| Specification | Details |
|---|---|
| Brand | ABB |
| Product Model | CB1-632B |
| Order Code | 1SFA619600R6326 |
| Product Type | Compact Acoustic Buzzer |
| Operating Voltage | 110–130 V DC |
| Signal Type | Pulsating sound |
| Illumination | Non-illuminated |
| Color | Black |
| Rated Current | 15 mA |
| Sound Level | Approximately 80 dB |
| Rated Frequency | 50/60 Hz |
| Connection Type | Screw terminals |
| Ambient Temperature | -25°C to +70°C |
| Front Protection | IP66, IP67, IP69K |
| Terminal Protection | IP20 |
| Mounting | Compatible compact panel-mount arrangement |
| Product Series | ABB CB1 |
| Ordering Reference | 1SFA619600R6326 |
Specifications are based on available ABB product catalog and distributor information. Confirm the mounting dimensions and operating requirements against the manufacturer’s documentation before installation.
Applications of ABB CB1-632B Compact Buzzer
1. Industrial Automation Systems
The ABB CB1-632B is suitable for industrial automation environments where operators need an audible indication of machine conditions. It can be integrated into compatible control panels to alert personnel when a programmed control condition occurs.
2. Electrical Control Panels
Electrical control panels often require audible signals to notify operators about equipment status, warnings, or operational events. This compact buzzer provides a practical way to add sound-based indication to compatible panel assemblies.
3. Manufacturing Machinery of ABB CB1-632B Compact Buzzer High Quality
In manufacturing facilities, audible indicators help operators recognize machine events without constantly monitoring the control display. The pulsating sound of the CB1-632B can be used in appropriately designed machine signaling circuits.
4. PLC-Based Control Systems of ABB CB1-632B Compact Buzzer High Quality
Programmable Logic Controllers (PLCs) can activate audible signaling devices through suitable control outputs or interface relays. The ABB buzzer may be incorporated into a PLC-based warning circuit when the electrical output, voltage, and current requirements are compatible.
5. Industrial Equipment Monitoring
The buzzer can support monitoring systems that require audible notifications for selected operating conditions. Typical examples include process status changes, equipment warnings, and operator attention alerts. Its specific function depends on the control logic and system design.
6. Electrical Distribution and Operator Stations of ABB CB1-632B Compact Buzzer High Quality
In suitable electrical distribution assemblies and operator stations, the CB1-632B provides audible indication in a compact format. It is particularly useful where a non-illuminated signaling device is preferred.
Benefits of Choosing ABB CB1-632B
Reliable audible notification: The pulsating tone helps attract attention and distinguish an alert from normal operating sounds.
Space-efficient installation: Its compact CB1 series design is useful for applications where panel space is limited.
Industrial operating range: The specified ambient temperature range supports use in a variety of industrial environments, provided the installation conditions remain within the product ratings.
Protection for demanding environments: The rated front protection helps support installation in environments exposed to dust or water when the applicable mounting and sealing requirements are satisfied. The terminal side has a separate IP20 rating, so the complete assembly must be protected appropriately.
Straightforward electrical connection: Screw terminals provide a conventional method for connecting the buzzer to a compatible supply and control circuit.
Integration flexibility: The device can be incorporated into suitable industrial control systems, including relay-based and PLC-controlled signaling arrangements.
Installation and Maintenance Guidelines of ABB CB1-632B Compact Buzzer High Quality
Before installing the ABB CB1-632B, verify that the supply voltage is within its specified 110–130 V DC range. Do not connect it to an AC supply or a different DC voltage unless the manufacturer’s documentation explicitly permits it.
Disconnect power before wiring or servicing the device. Follow the specified terminal arrangement, mounting instructions, and tightening requirements. Ensure that the panel opening, mounting accessories, and enclosure sealing are suitable for the selected installation.
For maintenance, inspect the electrical connections and mounting condition periodically. Keep the installation free from contamination that could interfere with the device’s operation, and test the audible signal as part of the equipment’s maintenance schedule.
The buzzer is an audible signaling component; it should not replace required safety interlocks, emergency-stop systems, or other protective measures.
Why Choose ABB CB1-632B from Scientific Gate?
Scientific Gate supplies electronic components, industrial automation products, and electrical spare parts for maintenance teams, manufacturers, engineering companies, and industrial projects.
The ABB CB1-632B Compact Buzzer is a useful option for buyers seeking a specific industrial acoustic signaling device for control panel assembly, equipment maintenance, or automation system integration. When purchasing, verify the complete part number 1SFA619600R6326 to help ensure that the selected product matches the required voltage and pulsating-sound configuration.
Scientific Gate can assist with product inquiries and sourcing requirements for industrial components and automation equipment.
