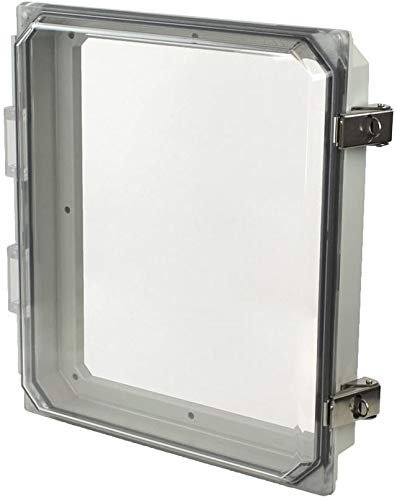

AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

غطاء HMI طراز AMHMI120CCL (مقاس 12×10×2.5 بوصة) – شفاف، عالي الجودة، مزود بآلية تثبيت بالكبس.

Protecting sensitive human-machine interfaces (HMIs), touchscreens, pushbuttons, and industrial control pads from harsh operational environments requires rugged, reliable surface-mounted housing. The AMHMI120CCL Clear HMI Cover Kit ($12” \times 10” \times 2.5”$) provides a heavy-duty, ultra-clear protective shield engineered for industrial control panels, automation systems, and outdoor equipment installations.

Featuring a UV-stabilized polycarbonate clear window, corrosion-resistant 316 stainless steel snap latches, and an IP66/NEMA 4X protective rating, this cover kit extends the operational lifespan of expensive control hardware while reducing arc flash exposure risks.

Technical Specifications & Features for AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

Key Performance Advantages of the AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

1. NEMA 4X and IP66 Weatherproof Protection

Industrial control environments expose electronic components to water jets, airborne dust, oil drips, and chemical washdowns. The AMHMI120CCL utilizes a continuous Formed-In-Place (FIP) polyurethane gasket housed inside an interlocking tongue-and-groove channel. When secured with the heavy-duty stainless steel snap latches, the assembly forms a liquid-tight seal that prevents moisture or debris ingress, meeting strict NEMA 4X and IP66 ingress protection standards.

2. High-Clarity, UV-Stabilized Polycarbonate Viewing Area

Made from premium optical-grade polycarbonate, the transparent hinged cover enables operators to monitor system statuses, read instrument displays, and inspect signal lamps without opening the enclosure door. The clear shield offers 100% UVA blocking capability to prevent display yellowing, cracking, or thermal degrading caused by sunlight exposure in outdoor or high-intensity ambient lighting applications.

3. Non-Corrosive and Impact-Resistant Construction of AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

Unlike traditional painted carbon steel or stainless steel HMI covers that add weight and are subject to scratching or denting, the AMHMI120CCL frame is constructed from non-conductive, high-impact polycarbonate. It is inherently corrosion-resistant, lightweight, and capable of withstanding physical impact in severe industrial settings.

4. Reduced Arc Flash & Maintenance Hazards of AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

Opening an electrical enclosure door exposes technicians to dangerous high-voltage components and arc flash hazards. Installing an AMHMI120CCL cover on the exterior panel allows operators to interact with touchscreen controllers or read operational metrics safely. Routine monitoring can be conducted through the clear window, and parameter changes can be completed quickly by opening only the hinged cover.

Primary Industrial Applications for AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

The AMHMI120CCL HMI cover kit is compatible with standard flat-surface electrical enclosures (sized $14” \times 12”$ or larger) across a wide range of industries:

• Water & Wastewater Treatment: Protects sensitive pump control touchpads from moisture, chemical vapors, and spray-downs.

• Food & Beverage Processing: Non-corrosive polycarbonate surfaces withstand daily high-pressure washdowns and sanitary cleaning agents.

• Factory Automation & Robotics: Guards main operator control interfaces, pushbuttons, and emergency stop buttons against shop-floor dust, mechanical impacts, and flying debris.

• Outdoor Solar & Renewable Energy Panels of AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality: Prevents UV degradation and weather-related damage on remote solar inverter monitoring units.

• Oil, Gas & Petrochemical Facilities: Provides robust outer shielding for field-mounted instruments and monitoring units in corrosive environments.

Simple Installation & Setup of AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality

The AMHMI120CCL kit includes hardware designed for straightforward mounting on existing enclosure surfaces:

1. Panel Cutout: Measure and cut a $10.47” \times 8.69”$ rectangular opening on the enclosure door or side wall according to the template drawing.

2. Align Base Frame: Position the gray RAL 7035 polycarbonate base frame over the cutout opening.

3. Fasten Screws: Secure the cover kit to the enclosure using the provided 8 mounting screws to compress the gasket uniformly.

4. Latch Setup: Test the 316 stainless steel snap latches to verify a tight, water-proof seal around the perimeter gasket.

Summary Checklist: Why Choose  of AMHMI120CCL HMI Cover12x10x2.5 Clear Snap High Quality?

• Clear Optical Window: Full view of HMI touchscreens and displays without opening main cabinet doors.

• Rugged Protection: NEMA 4X / IP66 rated for washdown and outdoor resistance.

• Secure Lockout: Stainless steel snap-latch mechanism supports padlock locking options for extra physical security.

• All-Weather Resilience: UV-blocking polycarbonate avoids discoloration and brittleness over time.
