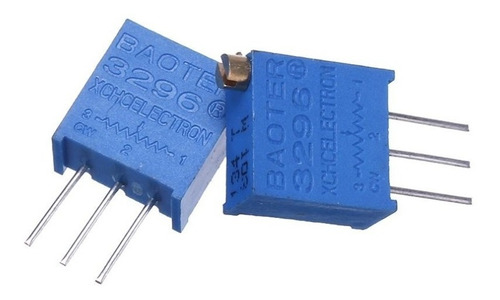

3296w-104 3296w Potentiometer 100k Ohm Trimpot

Name: 3296w-104 3296w Potentiometer 100k Ohm Trimpot | Scientific Gate
SKU: 9TVR104
Price: 5.00 SAR
Availability: InStock

5.00 SAR~~7.00 SAR~~

Status:20 in stock

3296 واط 104 3296 واط الجهد 100 كيلو أوم تريمبوت

SKU: 9TVR104 Category: Electronic Modules

5.00 SAR~~7.00 SAR~~

Description

Model : 3296W-104;Withstand Voltage : 500V;Rated Power : 1/2W
Resistance Value : 100K Ohm;Tolerance : ±10%;Adjustment Type : Top Adjustment;Mounting Type : Through Hole(DIP)
Turn Number : 25;Resistance Change Type : Linear;Temperature Coefficient : ±100ppm/°C
Resistivity Material : Cermet;Body Size : 9.5 x 9.5mm/ 3/8″ x 3/8″ (L*W);Total Length : 18mm/ 5/8″
Color : Blue;Weight : 8g;

Product Description

Feature: three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Great to use for device interior or Printed circuit boards which adjustable the resistance less. Through hole DIP mounting type.
